PRODUCT DETAILS DESCRIPTION
Applications:
Can be applied in the machines where continuous duty and cleanliness are required, like food、medicine、chemical industry.
Features:

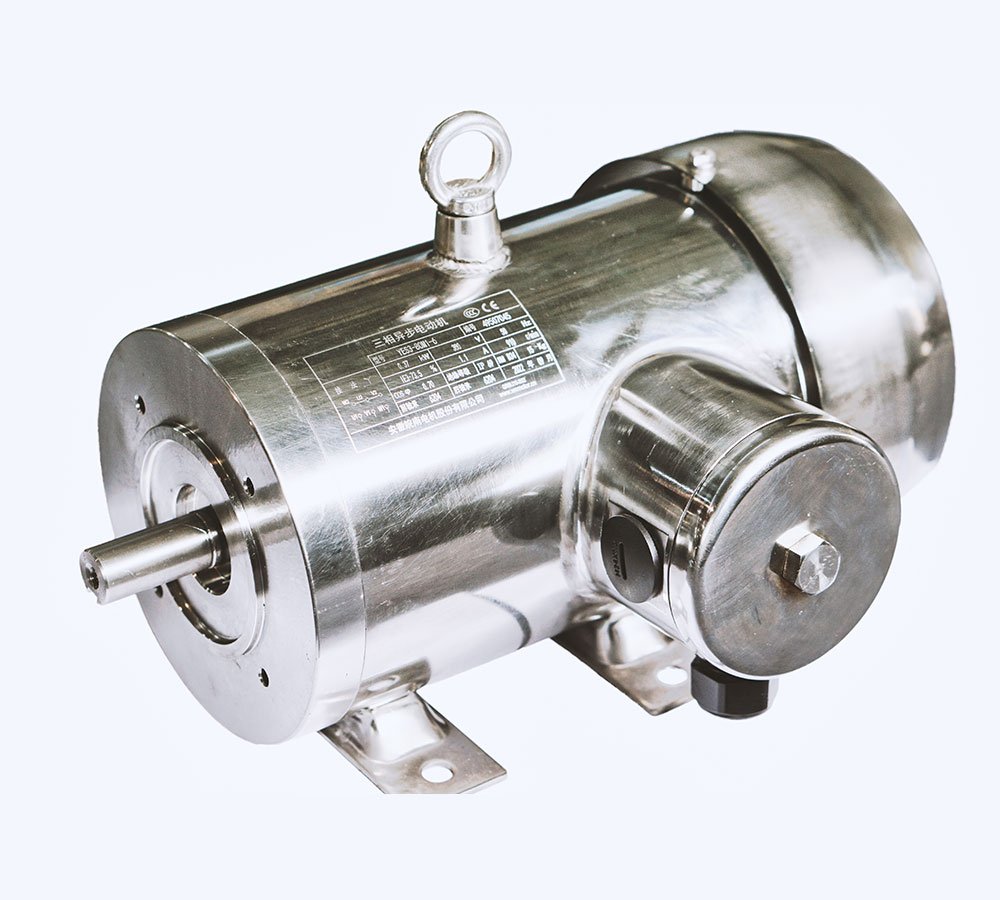

Beautiful profile, high efficiency and energy saving (Level 2 of GB18613-2012), class F insulation, IP55 protection grade, clean, no-rust, strong anticorrosion capability.
- All 304 Stainless Steel Frame, End bell At Both Ends,fan cover and shaft
- Space heater or Thermistor (PTC/PT100) available
- Antibacterial Treatment on All Internal Parts
- Round conduit box and housing, easy wash down
- 1.15 Service Factor
- Scratch resistant nameplate data laser printed(not etched) into frame to prevent corrosion and bacterial build up on nameplate
- All Double Lip Seals, Separate Housings For Dual Lip Seals
- Same Oversized 6200 Double Sealed Bearings At Both Ends
- SAE Threads & Bolts
- Sealing”O”Rings On Bolt & End Shields
- Double VPI Treatment & Epoxy Varnished
- End Shield & Body has Rebated Fitting
- TENV Temperature Rise Class”B”@1.0 or “F”@1.15
- Anti-bacterial Treatment on All Internal Parts, Anti-fungal,Anti-moisture Winding Treatment
- 4 Drain Plugs In Cast Stainless Steel End bells with T-drains Packed in Conduit Box
- Conduit Box & Cover Rubber Gasket
- Heavy Gauge Stamp Stainless Steel Feet 50-100 %
- Thicker Than Other Brand Names, Tig Welded
- Big Frames are cast feet
- Inverter Duty Wire
- Extra high breakdown torque.
- Patented vacuum epoxy encapsulation system ensures liquids won’t penetrate the motor

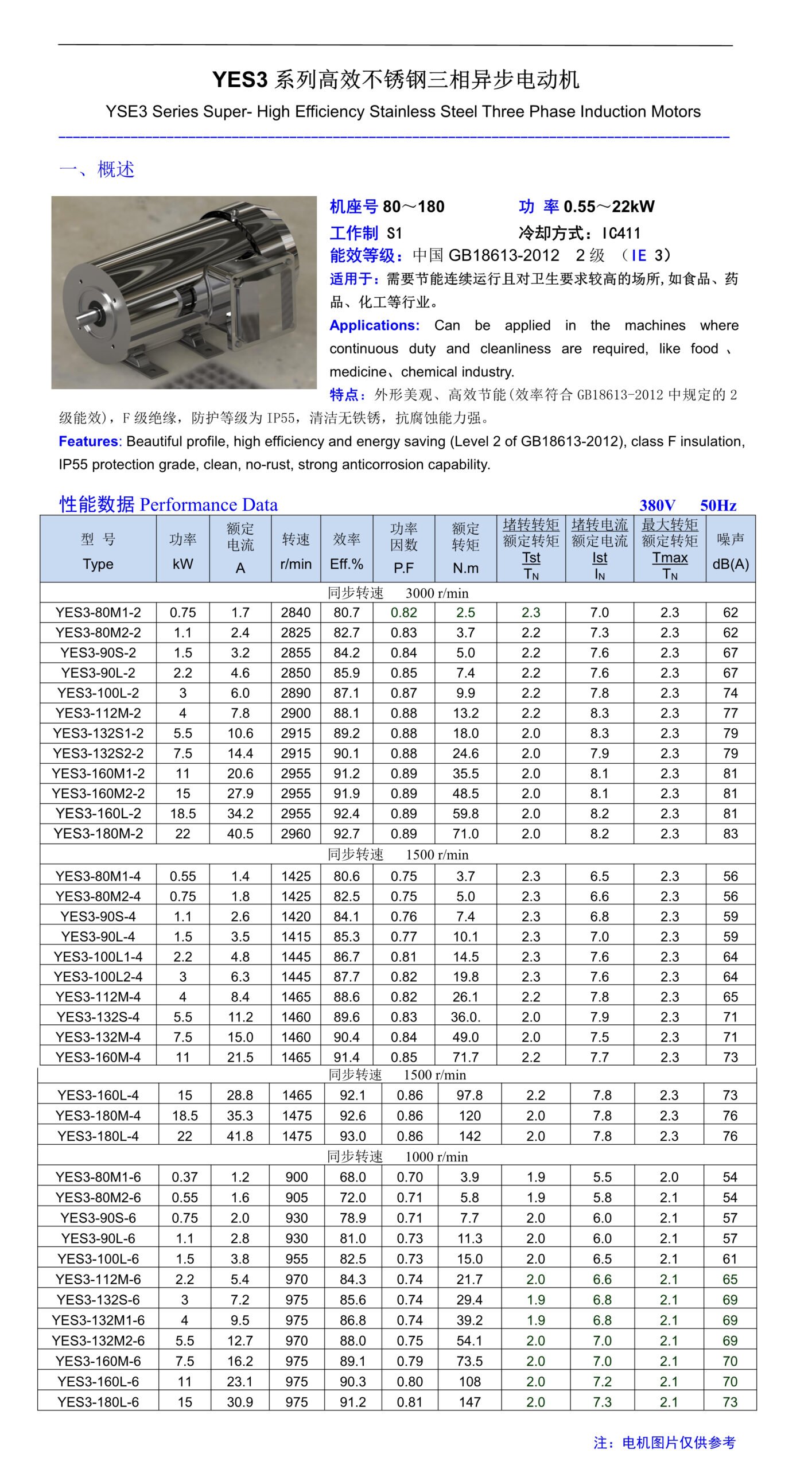

PRODUCT PERFORMANCE PREVIEW
