PRODUCT DETAILS DESCRIPTION

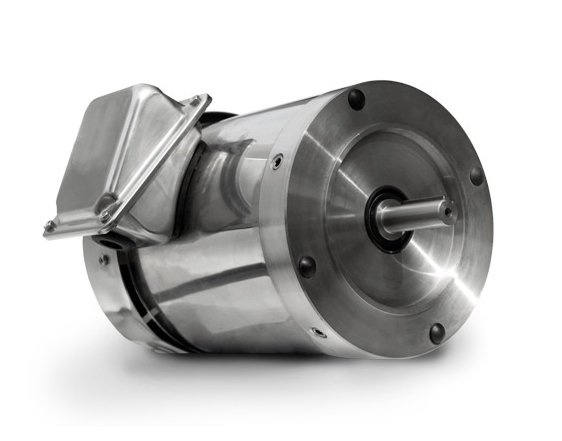

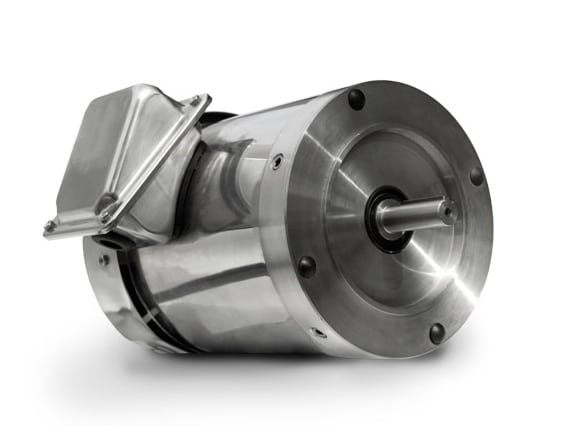

WANNAN Premium Efficient TC Frame Stainless Steel motors are designed to meet the severe-duty sanitation requirements for food-grade and high pressure washdown motor applications. Available in TC-Frame sizes, WANNAN Premium Efficient Stainless Steel motors feature a 1.15 service factor, IP55 degree of protection, interior anti-corrosion resistant coated, and are 100% TEFC 300 series stainless steel constructed for pharmaceutical, food & beverage processing and packaging industries.
Applications:
Food processing, packaging, outdoor and highly corrosive environments.
Continuous duty stainless steel motor designed to meet the severe sanitation requirements of food-grade and high pressure washdown motor applications in the pharmaceutical, food and beverage, processing and packaging industries.
Features:
All external surfaces 300 series stainless steel: motor frame, endplates, conduit box, shaft and base. Four condensate drains in each endplate. Conduit box gasketed. Lip seals. Especially effective in highly corrosive environments where paint or other finishes do not hold up.
- Inverter Duty Rated: 3:1CT & 5:1VT
- Service Factor: 1.15
- Design: “B” or “C”
- Protection Degree: IP55
- Enclosure: TEFC
- VPI process applied for best electrical performance
- C-Face with or without feet
- Class “F” insulation with Class “B” rise
- PTC140 thermistors standard for 180 frame and up
- Continuous duty – Washdown duty
- Sealed bearings
- Squirrel cage rotor
- 300 series stainless steel motor construction
- 12-Gauge puddle welded base on footed motors
- Anti-corrosion coating applied
- DE and NDE drain holes every 90°
- F1 assembly
- CSA-US certified and CE marked

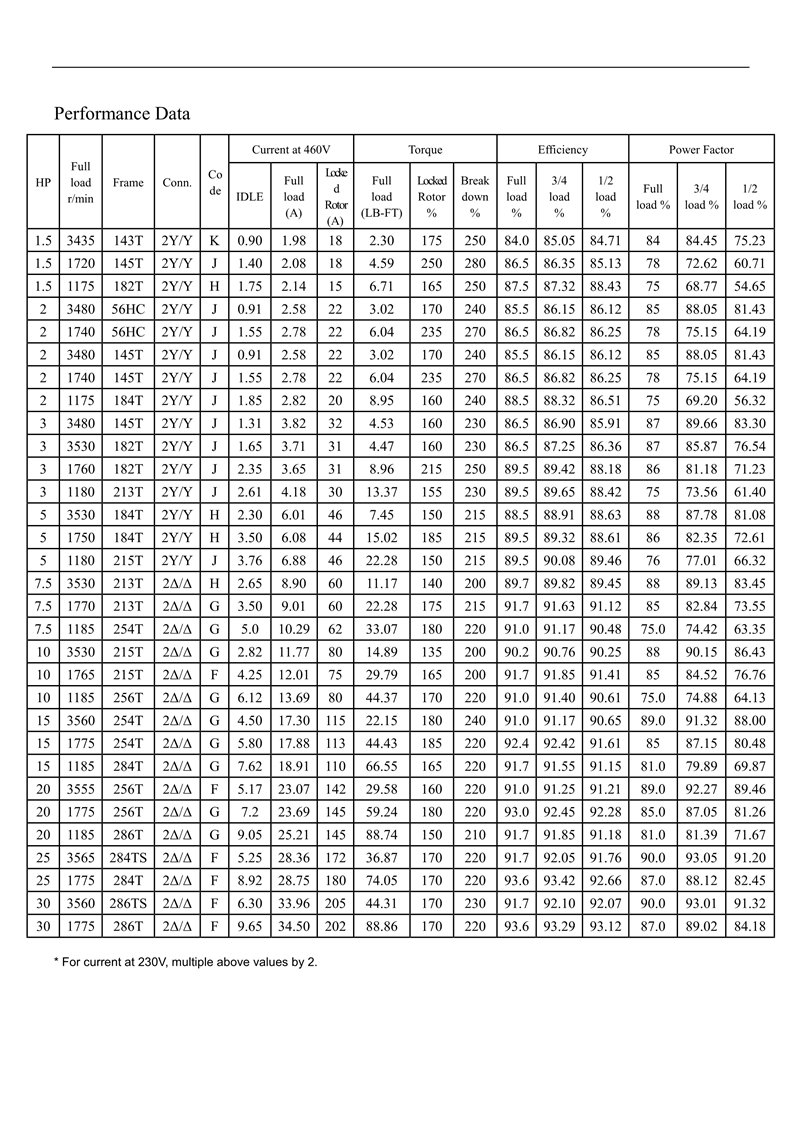

PRODUCT PERFORMANCE PREVIEW
