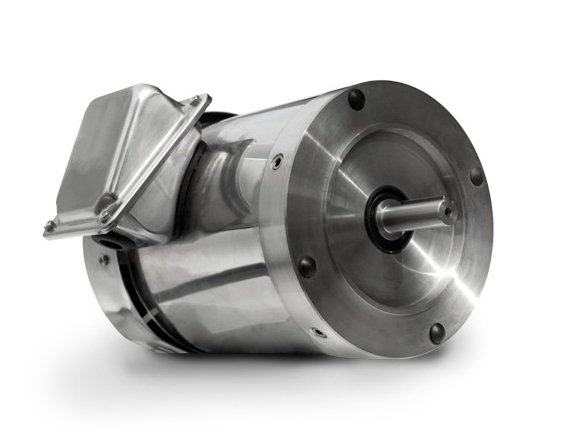

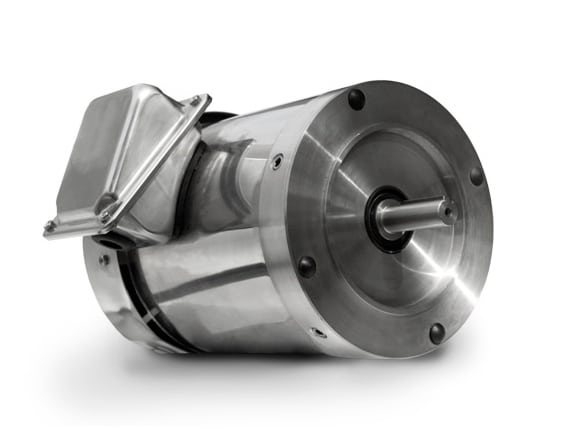

NS Series Stainless Steel Premium- efficiency Washdown Duty Motors

  • Inverter Duty Rated:  3:1CT & 5:1VT
  • Service Factor:  1.15
  • Design:  “B” or “C”
  • Protection Degree:  IP55
  • Enclosure:  TEFC
  • VPI process applied for best electrical performance
  • C-Face with or without feet
  • Class “F” insulation with Class “B” rise
  • PTC140 thermistors standard for 180 frame and up
  • Continuous duty – Washdown duty
  • Sealed bearings
  • Squirrel cage rotor
  • 300 series stainless steel motor construction
  • 12-Gauge puddle welded base on footed motors
  • Anti-corrosion coating applied
  • DE and NDE drain holes every 90°
  • F1 assembly
  • CSA-US certified and CE marked
  • Tel: (+86) 400-111-0563
  • Email: sales@wnmmotor.com

Get A Quick Requests Now

For technical consultations, solutions, and other inquiries regarding our products, please fill out the form below and click the “Submit” button. We will contact you as soon as possible.

PRODUCT DETAILS DESCRIPTION

Applications:
Food processing, packaging, outdoor and highly corrosive environments.
Features:
All external surfaces 300 series stainless steel: motor frame, endplates, conduit box, shaft and base. Four condensate drains in each endplate. Conduit box gasketed. Lip seals. Especially effective in highly corrosive environments where paint or other finishes do not hold up.
