PRODUCT DETAILS DESCRIPTION

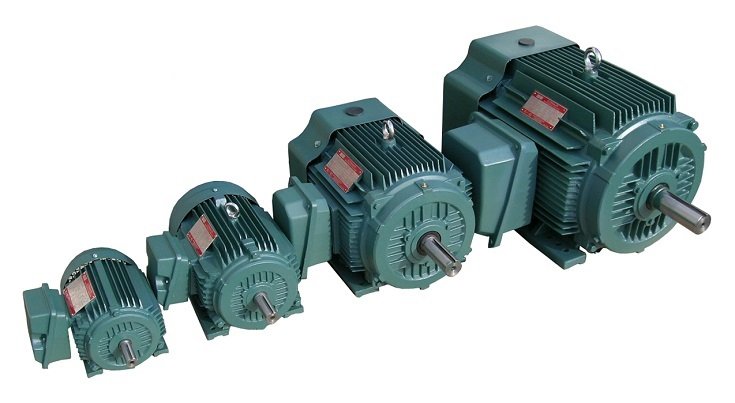

1．Product Overview
- Inverter Duty Rated: 5:1CT & 10:1VT
- Service Factor: 1.15
- Design: “B”
- Protection Degree: IP55
- Enclosure: TEFC Rigid Cast Iron Frame
- VPI applied for best electrical performance
- Corrosion resistant epoxy coated
- F1 / F2 Convertible
- Oversized bearings on both ends (444T and up DE Roller Bearing)
- 230/460V 60Hz, usable at 208V (444T and up 460V only)
- Double rated for 190/380V 50Hz
- Suitable for Y/delta starting and part winding starting
- Double drilled feet
- Class “F” insulation with rise below Class “B”
- CSA-US certified, DOE approved, CE marked
Optional features:
- A variety of electric motor modifications are available from our modification center including non-standard voltages.
- Flanges, bearings.
- Blowers.
- Higher service factor.
- Drip covers.
- Space heaters and more.
2．Main Product Parameters
Ideal for a wide variety of industrial applications that require a premium efficient foot mounted electric motor, such as fans & blowers, pumps, conveyors, crushers, compressors, mixers and more.
PRODUCT PERFORMANCE PREVIEW
